Electric Drum Pump Motors

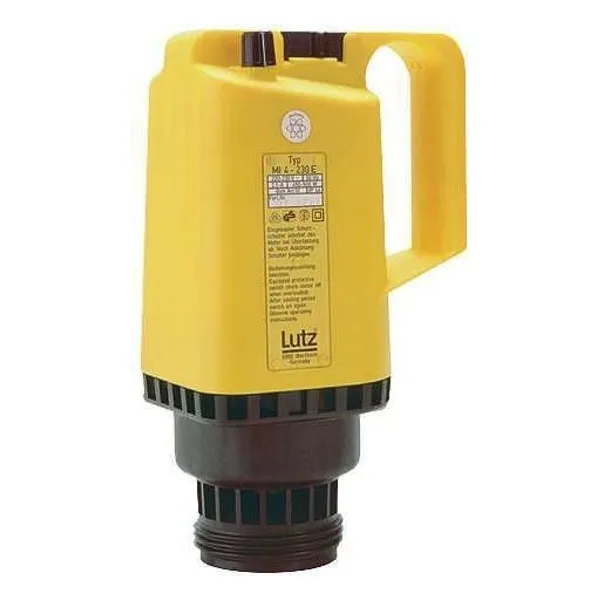

Electric motors for Lutz drum and container pumps, from the compact B28 universal motor (800 W, 1.07 HP, 120 V, open drip proof) to the B36 / MI 4 with optional speed control (640 W, 120 V, 230 V available) and the TEFC-enclosed B55-T / MA II 5 and MA II 7 industrial motors for aggressive and outgassing liquids. The MA II 3 runs on 12 V DC with alligator clamps for mobile use, and the B4 / GT three phase gear motor (1 HP, 230/440 V) covers continuous duty service. Every motor couples to any Lutz pump tube by handwheel, no tools needed, so one motor can serve several tubes in different materials and lengths. Match the motor to the liquid: open drip proof for non-flammable aqueous media, TEFC where the motor needs washdown or dust protection. For solvents and flammables, use an explosion-proof motor instead. If you are not sure which motor fits your tubes, send us the model from the nameplate through our contact form and we will match it.
